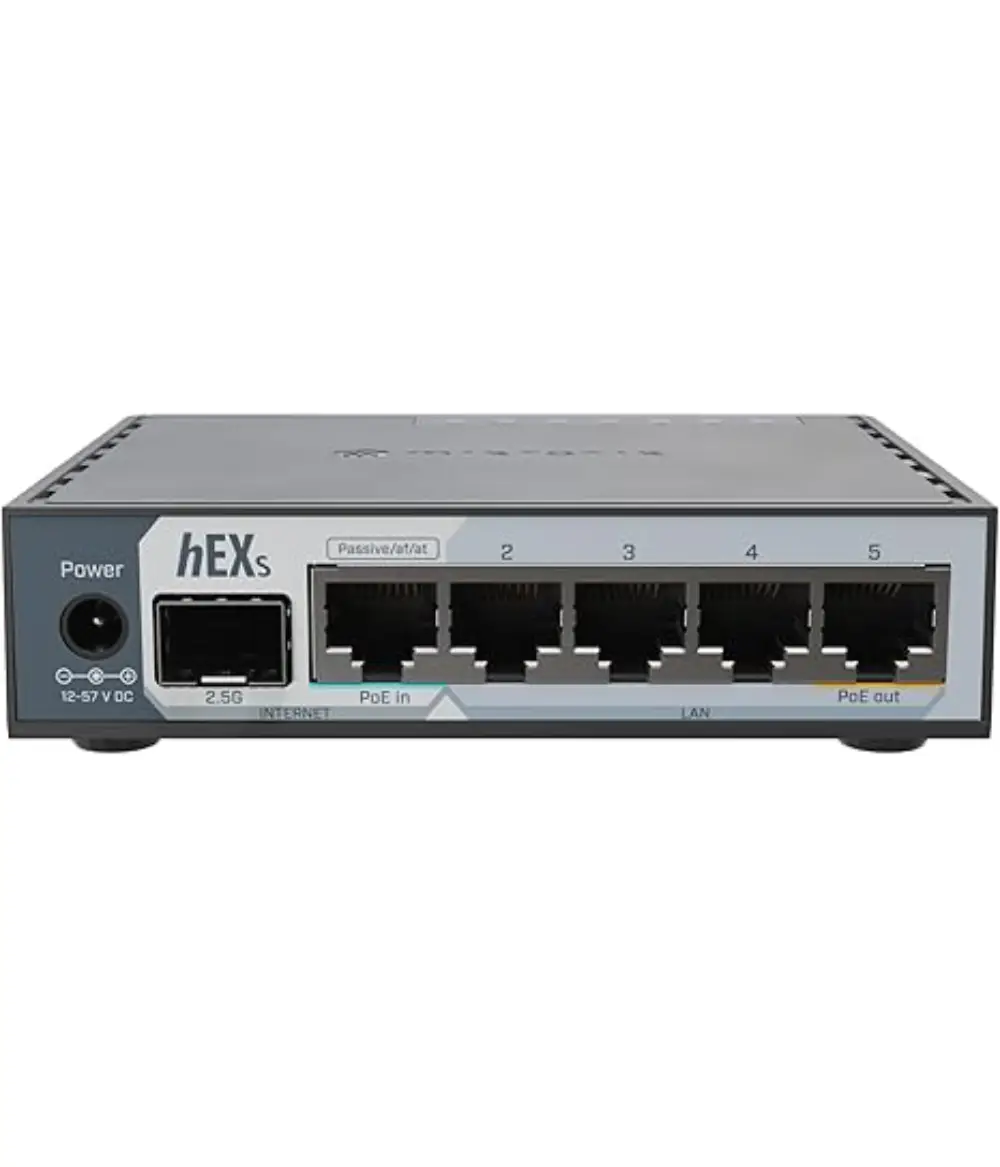

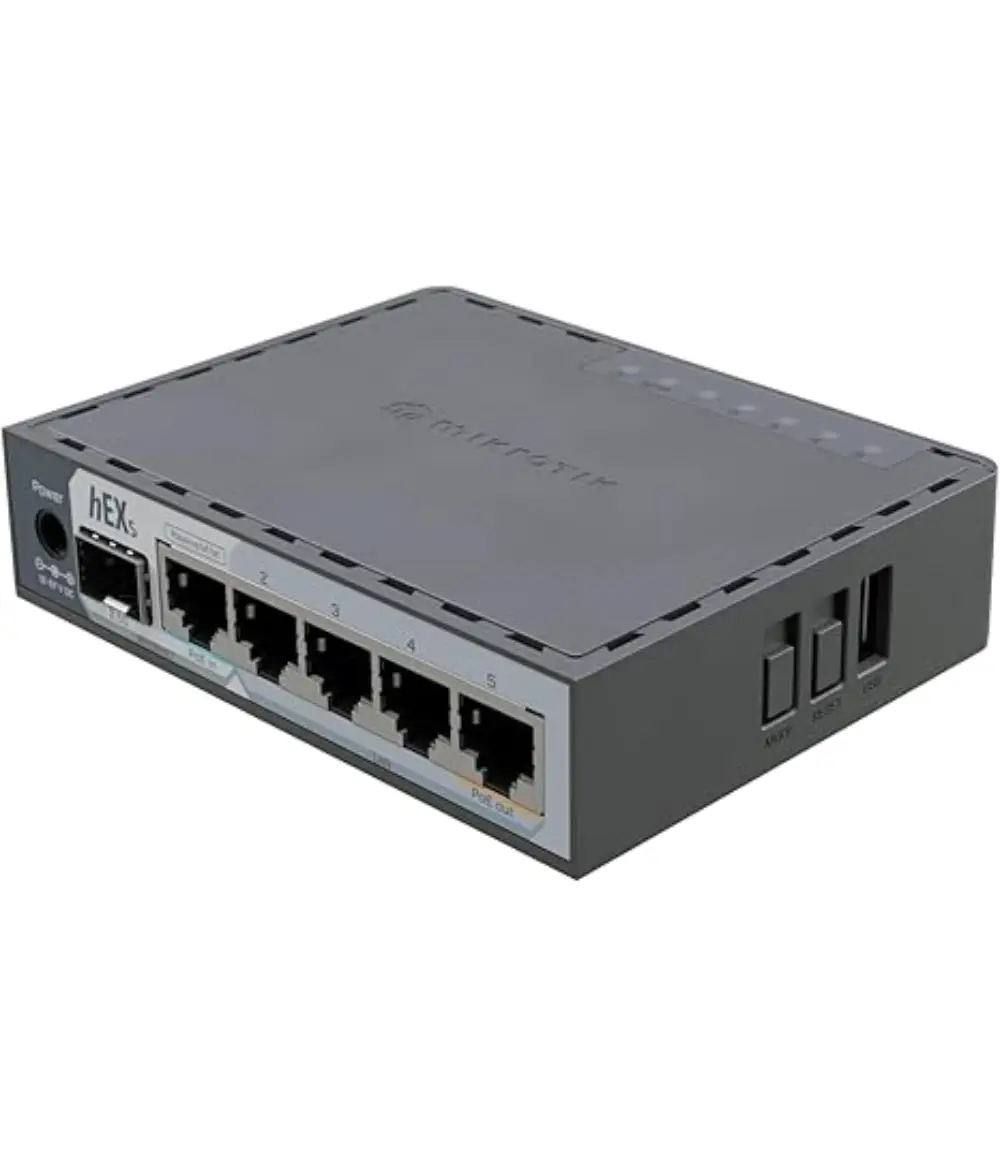

MikroTik hEX S

Specifications Details Product code E60iUGS Architecture ARM CPU EN7562CT CPU core count 2 CPU nominal frequency 950 MHz Switch chip model EN7562CT RouterOS license 4 Operating System RouterOS v7 Size of RAM 512 MB Storage size 128 MB Storage type NAND MTBF Approximately 100’000 hours at 25C Tested ambient temperature -40°C to 70°C IPsec hardware acceleration Yes Powering Details Number of DC inputs 2 (DC jack, PoE-IN) DC jack input Voltage 12-57 V Max power consumption 23 W Max power consumption without attachments 5 W PoE in 802.3af/at Cooling type Passive PoE in input Voltage 18-57 V PoE-out Details PoE-out ports Ether5 PoE out Passive PoE up to 57V Low voltage PoE-Out current limit 0.5 A High voltage PoE-Out current limit 0.5 A Ethernet Details 10/100/1000 Ethernet ports 5 Number of 1G Ethernet ports with PoE-out 1 Fiber Details SFP ports 1 (2.5G supported) Peripherals Details Number of USB ports 1 USB Power Reset Yes USB slot type USB 3.0 type A Max USB current (A) 1 Other Details CPU temperature monitor Yes PCB temperature monitor Yes Voltage Monitor Yes Mode button Yes Certification & Approvals Details Certification CE, EAC, ROHS IP 20
